Three-shaft universal mixer HUBBES with 250 liters

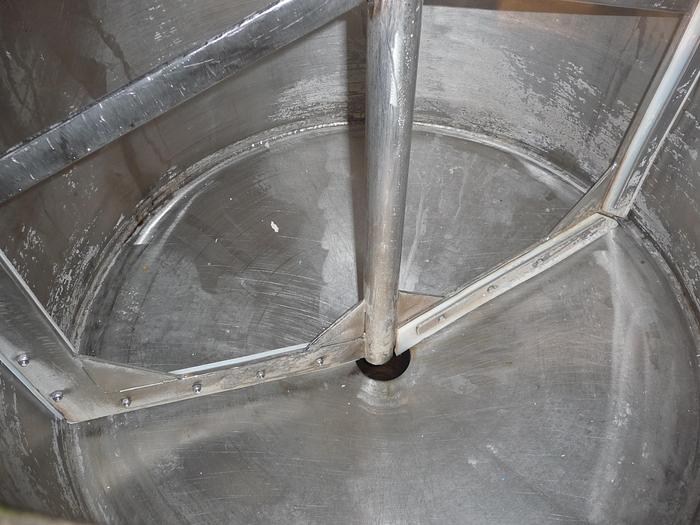

The mixer with a single-walled mixing container made of stainless steel is mounted in a three-legged frame with load cells. The mixing container has a flap for loading the raw materials, as well as a bottom outlet with a shut-off flap. With the three mounted drives, the central shaft for wiping off the inner wall of the container, the dissolver shaft for homogenizing the mixture and a mixing shaft with circular segments for mixing are driven. All functions are controlled with a separate control cabinet, the cable connections of which can be separated by plug connections. A SIEMENS PLC control is installed to process the signals.

Full content:

Usable content: approx. 250 liters

Speed scraper: approx. 229 rpm maximum

speed dissolver: approx. 1470 rpm maximum

speed mixing shaft: approx. 24 rpm maximum
