Circulating mixer with HUBBES dissolver shaft
Circulating mixer with HUBBES dissolver shaft
Contact us for price
Bad Salzuflen, Germany
Description

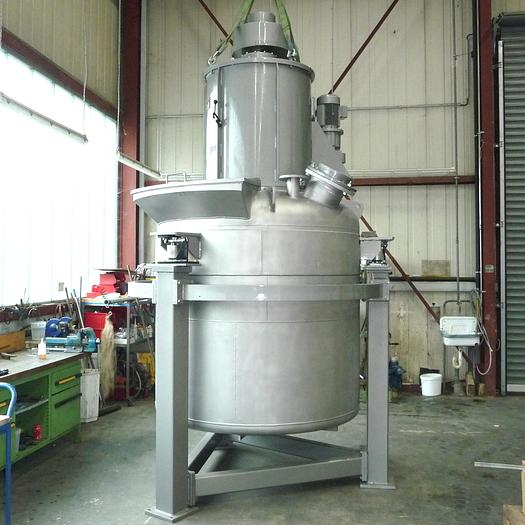

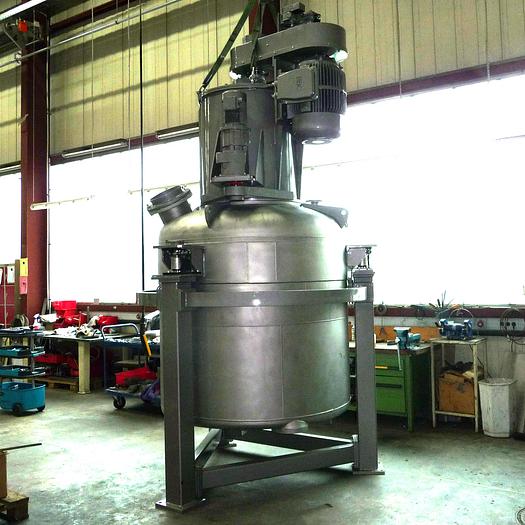

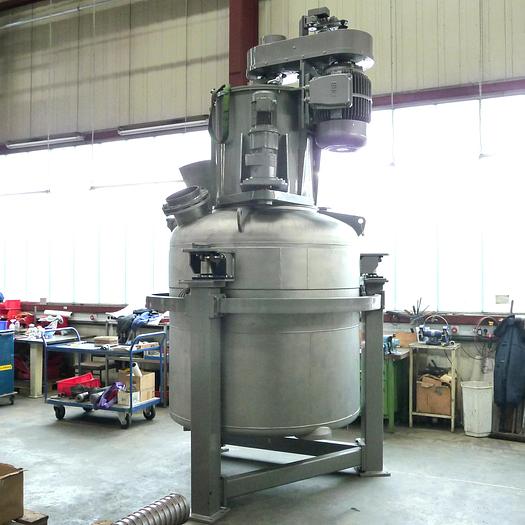

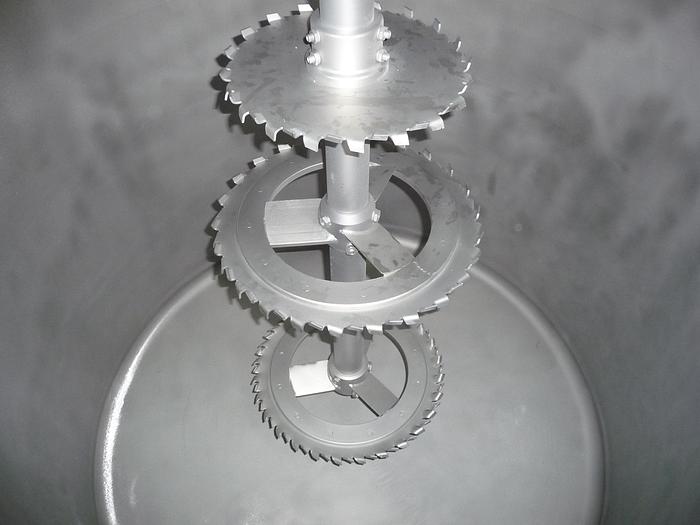

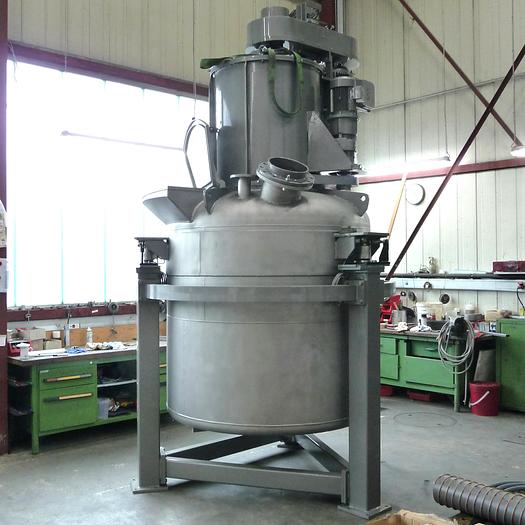

The all-purpose mixer is suitable for preparing different masses, such as creams, fat masses, etc. The container is made of stainless steel, single-walled. Three suspension points are mounted on the container on which the Container "is stored and has been provided with load cells, for automatic loading and accurate display of the Filling content. A manhole with protective circuit installed in the drive dome enables the mixing process to be monitored, as well as cleaning and maintenance work. The drive for the central shaft with wall scraper and the rotating dissolver shaft are located in the drive dome. The central shaft for the wall scraper is typically designed for HUBBES without a floor bearing. For loading with the Four inlet nozzles are installed as individual components, as well as an outlet for emptying. Net capacity: 2,000 liters Container material: 1.4301 stainless steel Diameter: Container height: Total height: Drive central shaft: 3.7 / 7.5 kW Drive dissolver shaft: 24 kW with 1500 rpm Type of current: 230/400 volts - 3 phases - 50 Hz.
Specifications
Manufacturer | Hubbes |
Year | 1987 |
Condition | Refurbished |
Stock Number | G11090 |
Group | C000 |
Usable content | 2,000 liters |
Container material | 1.4301 stainless steel |
Drive central shaft | 3.7 / 7.5 kW |
