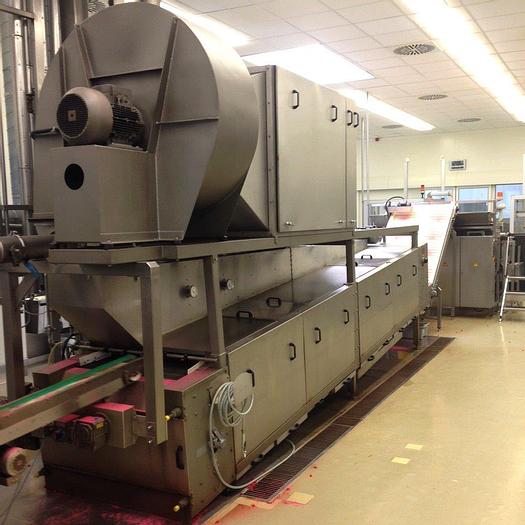

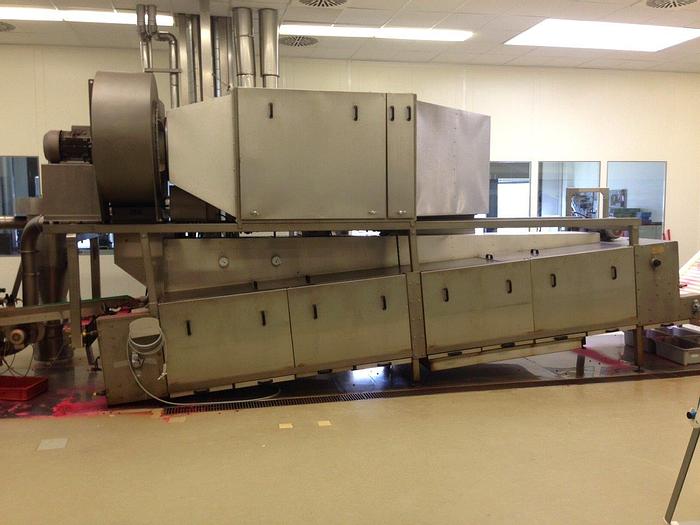

Three-way cooling track KLÖCKNER HÄNSEL type HKB-3016, built in 1997.
Three-way cooling track KLÖCKNER HÄNSEL type HKB-3016, built in 1997.
Contact us for price
Bad Salzuflen, Germany
Description
The cooling track works on three levels with stainless steel rod mesh belts which rise slightly in a stable manner Steel frames are mounted. The duct is provided with stainless steel cladding on the sides to prevent the cold air can escape uncontrolled. Above the belts is a cold water heat exchanger with a fan and a Air filter housing mounted to blow the cold air into the duct in a controlled manner. To catch the greeting particles are Stainless steel tubs that are easy to clean have been inserted under the belts. Output: approx. 1,000 kg per hour Mesh belt width: approx. 910 mm Dimensions: approx. 7,100 x 1,600 x 3,200 mm Net weight: approx. 5,000 kg Water consumption: approx. 7.3 m3 per hour Water temperature: approx. 6 ° Celscius
Specifications
Manufacturer | KLÖCKNER HÄNSEL |
Model | HKB-3016 |
Year | 1997 |
Condition | Used |
Stock Number | S00519 |
Grid bandwidth | about 910 mm |
Net weight | about 5,000 kg |
Water temperature | approx. 6 ° Celscius |
