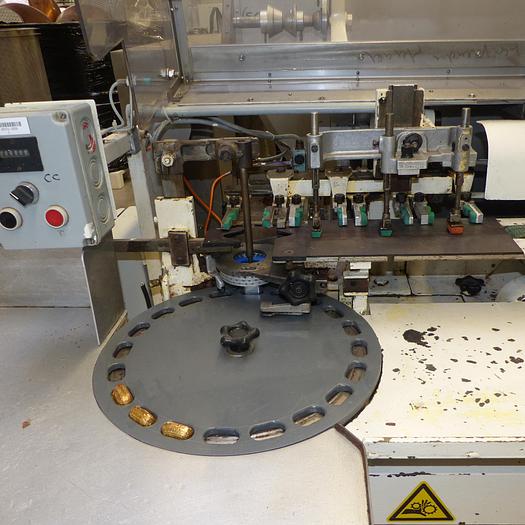

used Foiling machine make SAPAL type PRLP set up for bottom folding.

The machine is conceived to wrap chocolate products with aluminium foil. Through modification of the size /format parts, the machine can be used for wrapping products of all kinds. The rotation speed is continuously variable while the machine is running. The products are supplied to the folding devices by aluminium feeding plate which is fed manually. No foil is pulled when there are no articles on the feed plate.

The wrapped products are evacuated by a discharge belt.

Output: approx. 80 - 130 pcs/min. depending on the size of the product.

Size range with end folding:

Length: approx. 20 - 50 mm

Width: approx. 15 - 35 mm

Height: approx. 6 - 12 mm

or approx. 45 x 30 x 30 mm

or approx. 40 x 40 x 15 mm

Size range with brush folding:

Length: approx. 20 - 55 mm

Width: approx. 5 - 35 mm

Height: approx. 6 - 15 mm

or approx. 45 x 30 x 30 mm

or approx. 40 x 40 x 15 mm

Dimensions approx. 2050 x 1420 x 1240 mm

Weight: approx. 800 kg

All details as per manufacturer's brochure, whereby equipment-related specifications might differ from the standard version.
